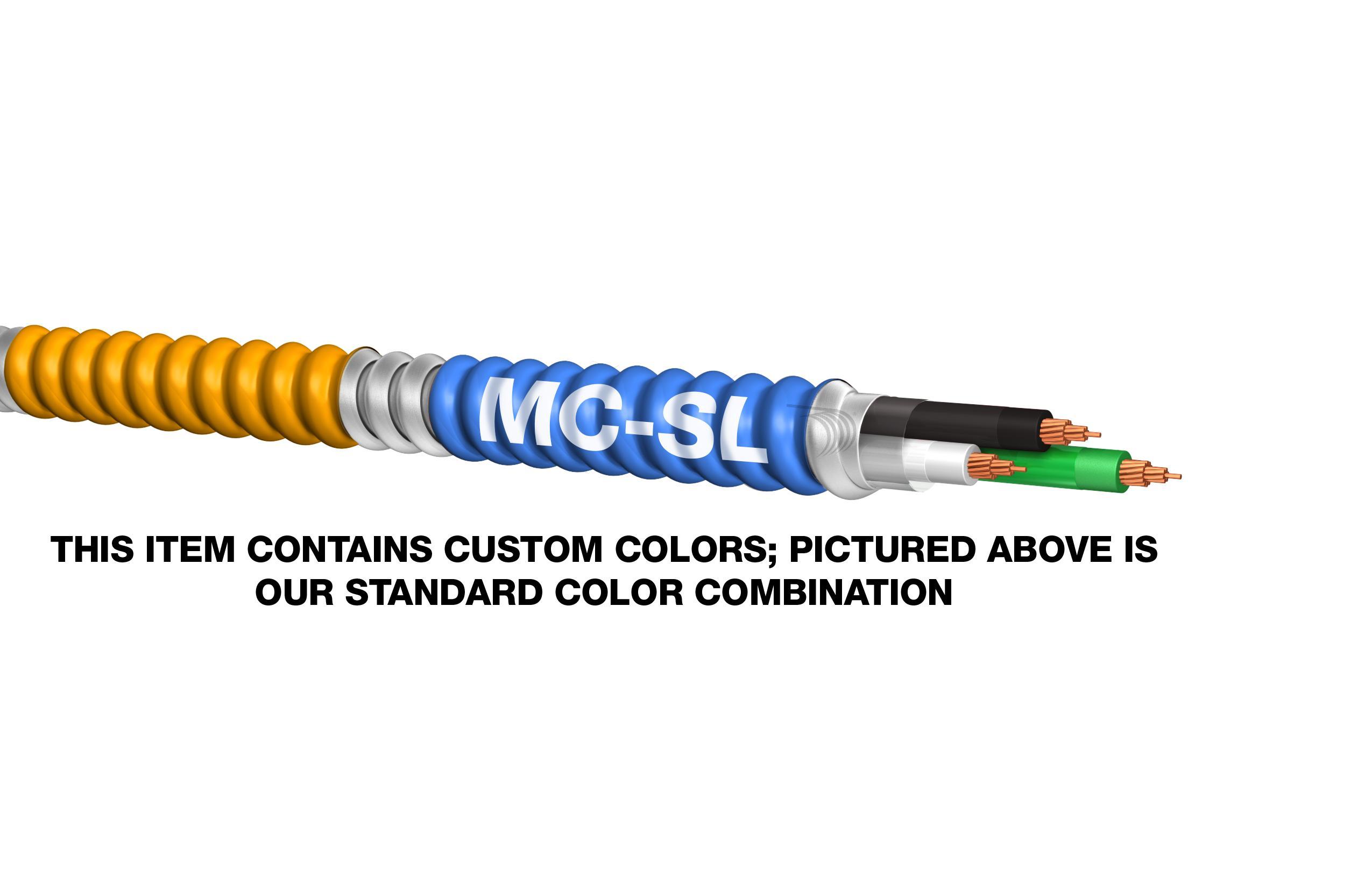

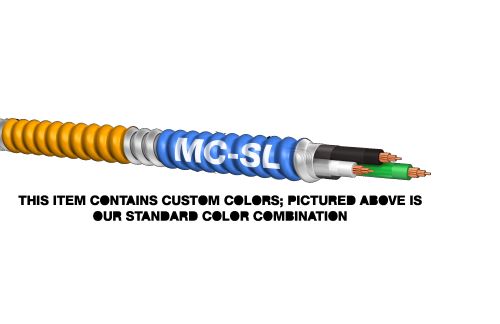

WIRE 12/2 MC STEEL JACKET - 250FT COIL
12/2 MC Cable, Steel Jacket, 250 ft – Durable for indoor branch circuits and secure wiring
Brand: WIRE
Item ID: 81749
MPN: 12/2 MC STEEL JACKET - 250FT COIL
Login for Price
Features
- Encore metal clad cable is constructed with soft drawn copper, type THHN/THWN-2 conductor rated 90 deg C dry locations
- All conductor are cable together with a separator tape containing the identification print legend to for the cable core
- Interlocked galvanized steel armor is applied over the entire assembly
Description
SmartColorID® Armor Conductor Cable, Type MC-SL, EZ Pack Packaging, 600 VAC, 20 A, 3 Conductors, Ground Solid Copper Conductor, 12 AWG Conductor, 0.487 in OD, 250 ft Length, Interlocked Galvanized Steel Armor Jacket, 90 deg C
Specifications
Amperage Rating |
20 A |
Conductor Size |
12 AWG |
Conductor Type |
Ground Solid Copper |
Jacket Material |
Interlocked Galvanized Steel Armor |
Length |
250 ft |
Number of Conductors |
3 |
Outside Diameter |
0.487 in |
Packaging Type |
EZ Pack |
Temperature Rating |
90 deg C |
Type |
Type MC-SL |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-301130|Buy American Act Compliant |
Application |
For services, feeders and branch circuits in industrial, commercial and multi-residential building applications |
Documentation
