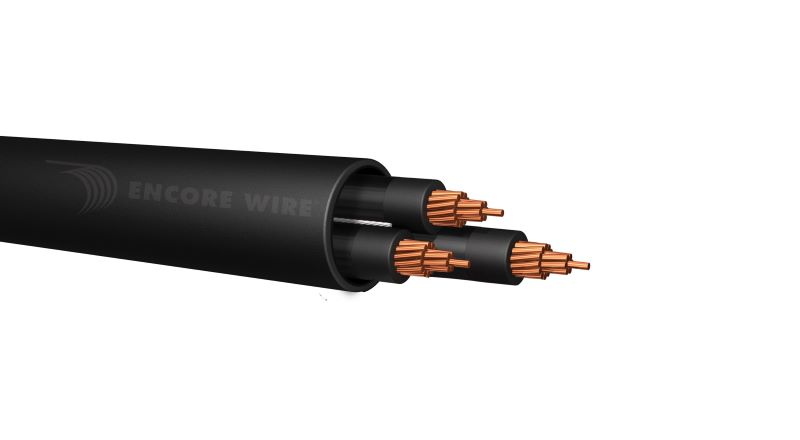

WIRE 12/7 TRAY PLAIN
12/7 Tray Cable – Multi-conductor cable for power and control applications, ideal for industrial tray systems.
Brand: WIRE
Item ID: 338518
MPN: 12/7 TRAY PLAIN
Login for Price
Features
- Stranded, uncoated copper conductors per ASTM-B3, ASTM-B8 and ASTM-B787
- High dielectric strength, heat and moisture resistant
- The insulated conductors are cabled together without a ground and with or without fillers as required to form a round compact core
- Nylon rip-cord is supplied for easy stripping
- Color coded insulation with ICEA method 1 with printed number
- A flame retardant, sunlight resistant, black PVC jackets is applied over shielded core
- Plain thermoplastic high heat resistant nylon coated tray cable
- Without ground
Description
Tray Cable, Type TC THNN, Reel Packaging, 600 VAC, 30 A, 7 Conductors, Stranded Copper Conductor, 12 AWG Conductor, 0.54 in OD, 1000 ft Length, PVC Insulation, PVC Jacket, Black Jacket, 90 deg C
Specifications
Amperage Rating |
30 A |
Conductor Size |
12 AWG |
Conductor Type |
Stranded Copper |
Insulation Material |
PVC |
Jacket Color |
Black |
Jacket Material |
PVC |
Length |
1000 ft |
Number of Conductors |
7 |
Outside Diameter |
0.54 in |
Packaging Type |
Reel |
Temperature Rating |
90 deg C |
Type |
Type TC THNN |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No. E-179429|Buy American Act Compliant |
Application |
Indoor Applications |
Documentation
Brochure https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Encore_Wire_115010701098_Brochure.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Encore_Wire_794280922050_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Encore_Wire_794280922050_RoHS.pdf
