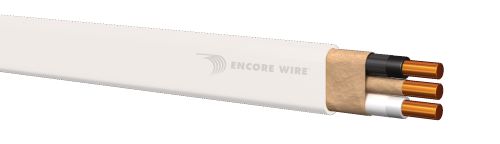

WIRE 14/2 NM-B W/GRD - 250FT COIL
14/2 NM-B w/GRD - 250ft Coil: Versatile indoor cable with ground, ideal for residential branch circuit wiring.
Brand: WIRE
Item ID: 66855
MPN: 14/2 NM-B W/GRD - 250FT COIL
Login for Price
Features
- Color code polyvinyl chloride compound meeting the required thickness or type THHN or THWN-2 with a heat stabilized nylon jacket rated for 90 deg C is dry locations
- Solid 14 to 10 AWG soft, uncoated copper conductor per ASTM-B3
- Soft, uncoated copper grounding conductor per ASTM-B3 or ASTM-B8
- A 30 mil, color coded, flame retardant and moisture resistant PVC jacket is applied over the completed assembly
Description
Non-Metallic Sheathed Cable, Type NM-B, EZ Pack Packaging, 600 VAC, 15 A, 3 Conductors, Solid Ground Copper Conductor, 14 AWG Conductor, 0.17 x 0.39 in OD, 250 ft Length, PVC Insulation, PVC Jacket, White Jacket, 90 deg C
Specifications
Amperage Rating |
15 A |
Conductor Size |
14 AWG |
Conductor Type |
Solid Ground Copper |
Insulation Material |
PVC |
Jacket Color |
White |
Jacket Material |
PVC |
Length |
250 ft |
Number of Conductors |
3 |
Outside Diameter |
0.17 x 0.39 in |
Packaging Type |
EZ Pack |
Temperature Rating |
90 deg C |
Type |
Type NM-B |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-123775|NEMA RV 2-2011|Buy American Act Compliant |
Application |
For residential wiring of luminaries, devices and appliances |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Encore_Wire_794280922050_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Encore_Wire_794280922050_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6e31ddb6b32d6660f382a7da56462fa35185f02700e3770856599c5aec8e75ec.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6e31ddb6b32d6660f382a7da56462fa35185f02700e3770856599c5aec8e75ec.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e78b7f7200a80a5abbda7e76ccb5a95512e87385b9662e6829c3ebfbb134d2db.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e78b7f7200a80a5abbda7e76ccb5a95512e87385b9662e6829c3ebfbb134d2db.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_867f70dffef62dfd3b1c6e4c31af426cd96b19c053d8a86b009745addf2d2202.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_867f70dffef62dfd3b1c6e4c31af426cd96b19c053d8a86b009745addf2d2202.pdf
