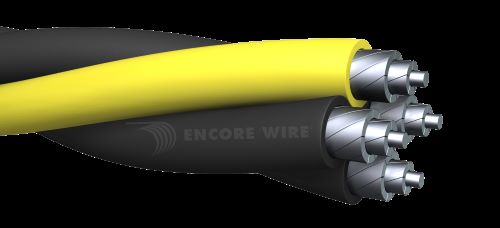

WIRE 2/0-2/0-2/0-1 ALUMINUM QUADRUPLEX
2/0-2/0-2/0-1 Aluminum Quadruplex Cable – Ideal for overhead service connections and power distribution.
Brand: WIRE
Item ID: 535505
MPN: 2/0-2/0-2/0-1 ALUMINUM QUADRUPLEX
Login for Price
Features
- Compact stranded aluminum alloy 1350 series per ASTM-B230, ASTM-B231, ASTM-B609 and ASTM-B836
- Cross-linked polyethylene (XLPE) insulation per UL-854 and ANSI/ICEA S-105-692, black XLPE insulation or phase conductors, yellow XLPE insulation or grounded (neutral) conductor
- Syracuse code word
Description
Underground Distribution Cable, Quadplex, Reel Packaging, 600 VAC, 226 A, 4 Conductors, Stranded Aluminum Conductor, 2/0 AWG Conductor, 0.536 in OD, 1000 ft Length, 12 Strands, Polyethylene Insulation, PVC Coated Jacket, Black/Yellow Jacket, 90 deg C
Specifications
Amperage Rating |
226 A |
Conductor Size |
2/0 AWG |
Conductor Type |
Stranded Aluminum |
Insulation Material |
Polyethylene |
Jacket Color |
Black/Yellow |
Jacket Material |
PVC Coated |
Length |
1000 ft |
Number of Conductors |
4 |
Outside Diameter |
0.536 in |
Packaging Type |
Reel |
Strands |
12 |
Temperature Rating |
90 deg C |
Type |
Quadplex |
Voltage Rating |
600 VAC |
Standard Approval |
UL File E-174428|REACH Compliant|RoHS Compliant|Buy American Act Compliant |
Application |
Energy Distribution Applications |
Documentation
