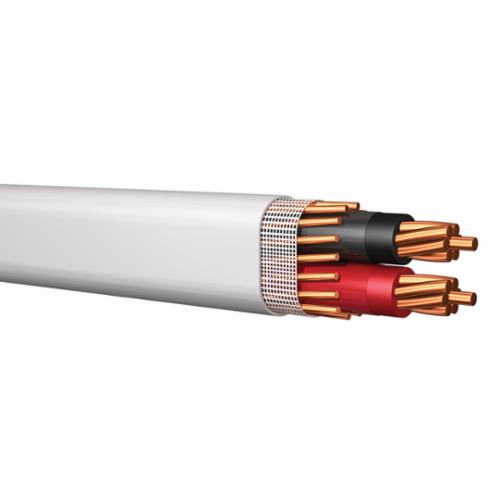

WIRE 2/3 SEU CU
2/3 SEU Copper Cable – Reliable, dual-rated for indoor service entrance applications.
Brand: WIRE
Item ID: 67020
MPN: 2/3 SEU CU
Login for Price
Features
- High dielectric strength, heat and moisture resistant, black or colored polyvinyl chloride (PVC) rated 90 deg C wet or dry, meeting the requirements or UL-83 for THHN or THWN-2 wire
- Clear nylon sheath meeting the requirements or UL-83 for THHN or THWN-2 conductor jacket
- Soft drawn annealed copper conductor
- A gray, sunlight and fungus resistant PVC jacket
Description
Service Entrance Cable, Type SE Style U, Reel Packaging, 600 VAC, 130 A, 3 Conductors, Stranded Copper Conductor, 2 AWG Conductor, 1000 ft Length, 12 Strands, PVC Insulation, PVC Jacket, Gray Jacket, 90 deg C
Specifications
Amperage Rating |
130 A |
Conductor Size |
2 AWG |
Conductor Type |
Stranded Copper |
Insulation Material |
PVC |
Jacket Color |
Gray |
Jacket Material |
PVC |
Length |
1000 ft |
Number of Conductors |
3 |
Packaging Type |
Reel |
Strands |
12 |
Temperature Rating |
90 deg C |
Type |
Type SE Style U |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-174428|NEMA RV 4-2012|Buy American Act Compliant |
Application |
For above ground electrical service use from the electric utility power service point to the meter or service entrance panel, residential applications |
Documentation
