WIRE 2 THHN-2 STRANDED WHITE - 2500 ft Reel

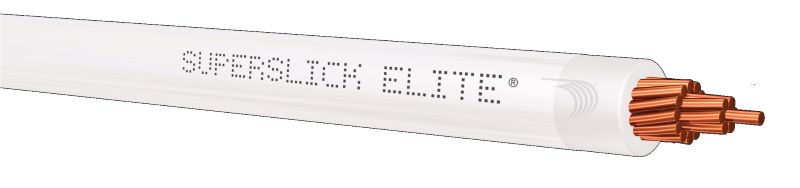

2 AWG THHN-2 Stranded Wire, White – Durable, heat-resistant for indoor and outdoor applications.
Brand: WIRE
Item ID: 490063
MPN: 2 THHN-2 STRANDED WHITE - 2500 ft Reel
Login for Price
Features
- Color code polyvinyl chloride (PVC), heat and moisture resistant, flame retardant compound
- Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
- A tough, polyamide, nylon outer covering per UL-83 and UL-1063
Description
Building Wire, Type THWN-2, Reel Packaging, 600 VAC, 130 A, 1 Conductor, Stranded Copper Conductor, 2 AWG Conductor, 0.378 in OD, 2500 ft Length, 19 Strands, PVC Insulation, Nylon Jacket, White Jacket, 90 deg C
Specifications
Amperage Rating |
130 A |
Conductor Size |
2 AWG |
Conductor Type |
Stranded Copper |
Insulation Material |
PVC |
Jacket Color |
White |
Jacket Material |
Nylon |
Length |
2500 ft |
Number of Conductors |
1 |
Outside Diameter |
0.378 in |
Packaging Type |
Reel |
Strands |
19 |
Temperature Rating |
90 deg C |
Type |
Type THWN-2 |
Voltage Rating |
600 VAC |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL-83/UL-758/UL-1063/UL-1581/UL-2556/UL E-156879|ASTM B800/ASTM B801/ASTM B836|Federal Specification AA-59544|CSA C22.2 No. 75|NEMA WC70/ICEA S-95-658|ANSI NFPA 79 AWM|New York State DOS-16120-87-1222-1048|IEEE 1202/FT4|ICEA T-29-520|ARRA 2009 Section 1605|MasterSpec Division 26 Sections 260519, 260523 |
Application |
Commercial Applications |
