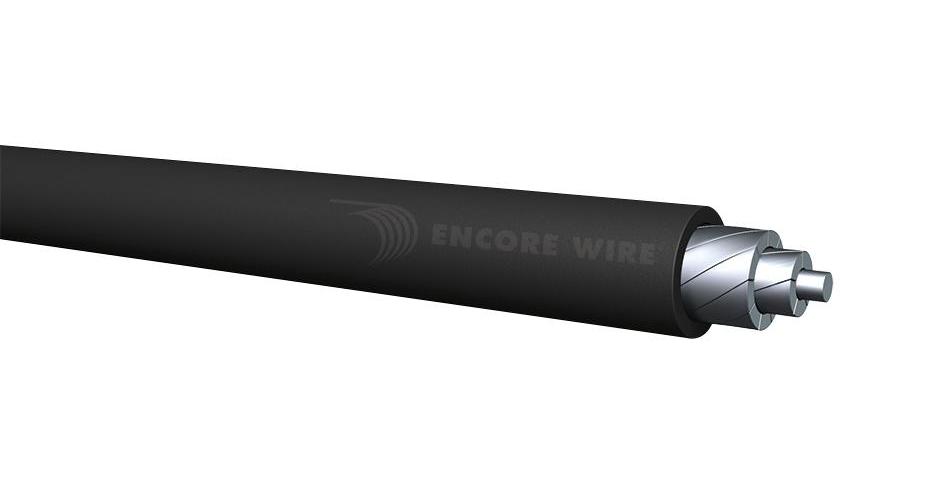

WIRE 250 MCM XLP USE ALUMINUM
250 MCM XLP USE Aluminum Wire – Durable, UV-resistant for outdoor electrical installations.
Brand: WIRE
Item ID: 67038
MPN: 250 MCM XLP USE ALUMINUM
Login for Price
Features
- Compact stranded aluminum alloy 8000 series per ASTM-B800, ASTM-B801 and ASTM-B836
- Cross-linked polyethylene (XLPE) insulation per UL-854
- Sunlight-resistant jacket
Description
Building Wire, Type USE-2, Reel Packaging, 600 VAC, 230 A, 1 Conductor, Stranded Aluminum Conductor, 250 kcmil Conductor, 0.71 in OD, 2500 ft Length, 22 Strands, Polyethylene Insulation, Black Jacket, 90 deg C
Specifications
Amperage Rating |
230 A |
Conductor Size |
250 kcmil |
Conductor Type |
Stranded Aluminum |
Insulation Material |
Polyethylene |
Jacket Color |
Black |
Length |
2500 ft |
Number of Conductors |
1 |
Outside Diameter |
0.71 in |
Packaging Type |
Reel |
Strands |
22 |
Temperature Rating |
90 deg C |
Type |
Type USE-2 |
Voltage Rating |
600 VAC |
Standard Approval |
UL 44/854/E-174428|Federal Specification AA-59544|NEMA WC70/ICEA S-95-658|National Electrical Code® (NEC®)|IEEE 1202/FT4 Flame Test|ICEA T-29-520|Buy American Act Compliant|REACH Compliant|RoHS Compliant |
Application |
For conduit and raceways installed underground in wet locations and commercial applications |
