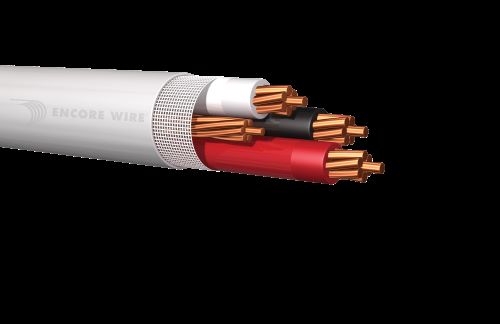

WIRE 3-1 SER CU W/GRD 500
3-1 SER Copper Cable with Ground, 500 ft – Reliable for indoor service entrance and feeder wiring.
Brand: WIRE
Item ID: 67043
MPN: 3-1 SER CU W/GRD 500
Login for Price
Features
- 7 strand class B concentrically stranded per ASTM-B8
- High dielectric strength, heat and moisture resistant, black or colored polyvinyl chloride (PVC) rated 90 deg C wet or dry, meeting the requirements or UL-83 for THHN or THWN-2 wire
- Clear nylon sheath meeting the requirements or UL-83 for THHN or THWN-2 conductor jacket
- Bare, soft drawn grounding conductor per ASTM-B3, ASTM-B8, or ASTM-B787 ground/neutral conductor
- A gray, sunlight and fungus resistant PVC jacket
Description
Service Entrance Cable, Type SE Style R, Reel Packaging, 600 VAC, 145 A, 4 Conductors, Stranded Copper Conductor, 3 to 1 AWG Conductor, 1.1 in OD, 500 ft Length, 7 Strands, PVC Insulation, PVC Jacket, Gray Jacket, 90 deg C
Specifications
Amperage Rating |
145 A |
Conductor Size |
3 to 1 AWG |
Conductor Type |
Stranded Copper |
Insulation Material |
PVC |
Jacket Color |
Gray |
Jacket Material |
PVC |
Length |
500 ft |
Number of Conductors |
4 |
Outside Diameter |
1.1 in |
Packaging Type |
Reel |
Strands |
7 |
Temperature Rating |
90 deg C |
Type |
Type SE Style R |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-174428|NEMA RV 4-2012|Buy American Act Compliant |
Application |
For above ground electrical service use from the electric utility power service point to the meter or service entrance panel, residential applications |
