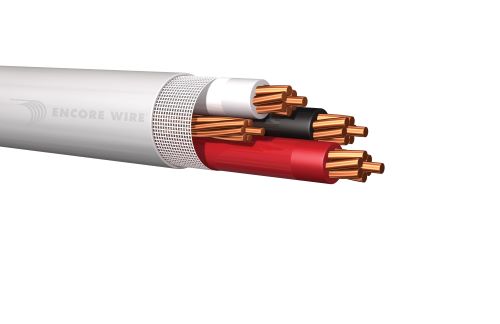

WIRE 3-2/0 SER CU W/GRD
3-2/0 SER CU w/GRD: High-capacity copper service entrance cable with ground, ideal for main panel connections.
Brand: WIRE
Item ID: 67050
MPN: 3-2/0 SER CU W/GRD
Login for Price
Features
- 19 strand combination unilay stranded conductor per ASTM-B787
- High dielectric strength, heat and moisture resistant, black or colored polyvinyl chloride (PVC) rated 90 deg C wet or dry, meeting the requirements or UL-83 for THHN or THWN-2 wire
- Clear nylon sheath meeting the requirements or UL-83 for THHN or THWN-2 conductor jacket
- Bare, soft drawn grounding conductor per ASTM-B3, ASTM-B8, or ASTM-B787 ground/neutral conductor
- A gray, sunlight and fungus resistant PVC jacket
Description
Service Entrance Cable, Type SE Style R, Reel Packaging, 600 VAC, 195 A, 4 Conductors, Stranded Copper Conductor, 1 to 2/0 AWG Conductor, 1.31 in OD, 1000 ft Length, 19 Strands, PVC Insulation, PVC Jacket, Gray Jacket, 90 deg C
Specifications
Amperage Rating |
195 A |
Conductor Size |
1 to 2/0 AWG |
Conductor Type |
Stranded Copper |
Insulation Material |
PVC |
Jacket Color |
Gray |
Jacket Material |
PVC |
Length |
1000 ft |
Number of Conductors |
4 |
Outside Diameter |
1.31 in |
Packaging Type |
Reel |
Strands |
19 |
Temperature Rating |
90 deg C |
Type |
Type SE Style R |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-174428|NEMA RV 4-2012|Buy American Act Compliant |
Application |
For above ground electrical service use from the electric utility power service point to the meter or service entrance panel, residential applications |
