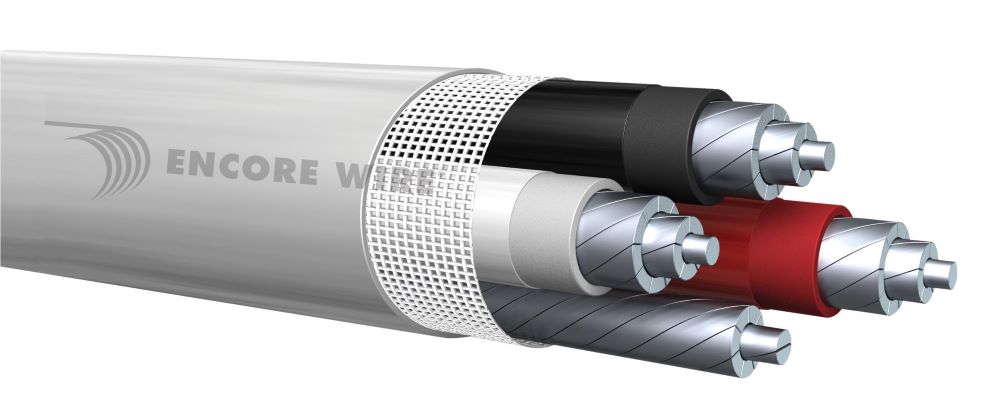

WIRE 3-2 SER ALUMINUM W/GRD
3-2 SER Aluminum Cable with Ground – Reliable, durable for service entrance and feeder wiring.
Brand: WIRE
Item ID: 452670
MPN: 3-2 SER ALUMINUM W/GRD
Login for Price
Features
- Compact stranded aluminum alloy 8000 series per ASTM-B800, ASTM-B801 and ASTM-B836
- High dielectric strength, heat and moisture resistant, black or colored polyvinyl chloride (PVC) rated 90 deg C wet or dry, meeting the requirements or UL-83 for THHN or THWN-2 wire
- A tough, polyamide, nylon outer covering per UL-83
Description
Service Entrance Cable, Type SE Style R, Reel Packaging, 600 VAC, 100 A, 4 Conductors, Stranded Aluminum Conductor, 4 to 2 AWG Conductor, 0.95 in OD, 250 ft Length, 7 Strands, PVC Insulation, PVC Jacket, Gray Jacket, 90 deg C
Specifications
Amperage Rating |
100 A |
Conductor Size |
4 to 2 AWG |
Conductor Type |
Stranded Aluminum |
Insulation Material |
PVC |
Jacket Color |
Gray |
Jacket Material |
PVC |
Length |
250 ft |
Number of Conductors |
4 |
Outside Diameter |
0.95 in |
Packaging Type |
Reel |
Strands |
7 |
Temperature Rating |
90 deg C |
Type |
Type SE Style R |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-174428|NEMA RV 4-2012|Buy American Act Compliant |
Application |
For above ground electrical service use from the electric utility power service point to the meter or service entrance panel, residential applications |
