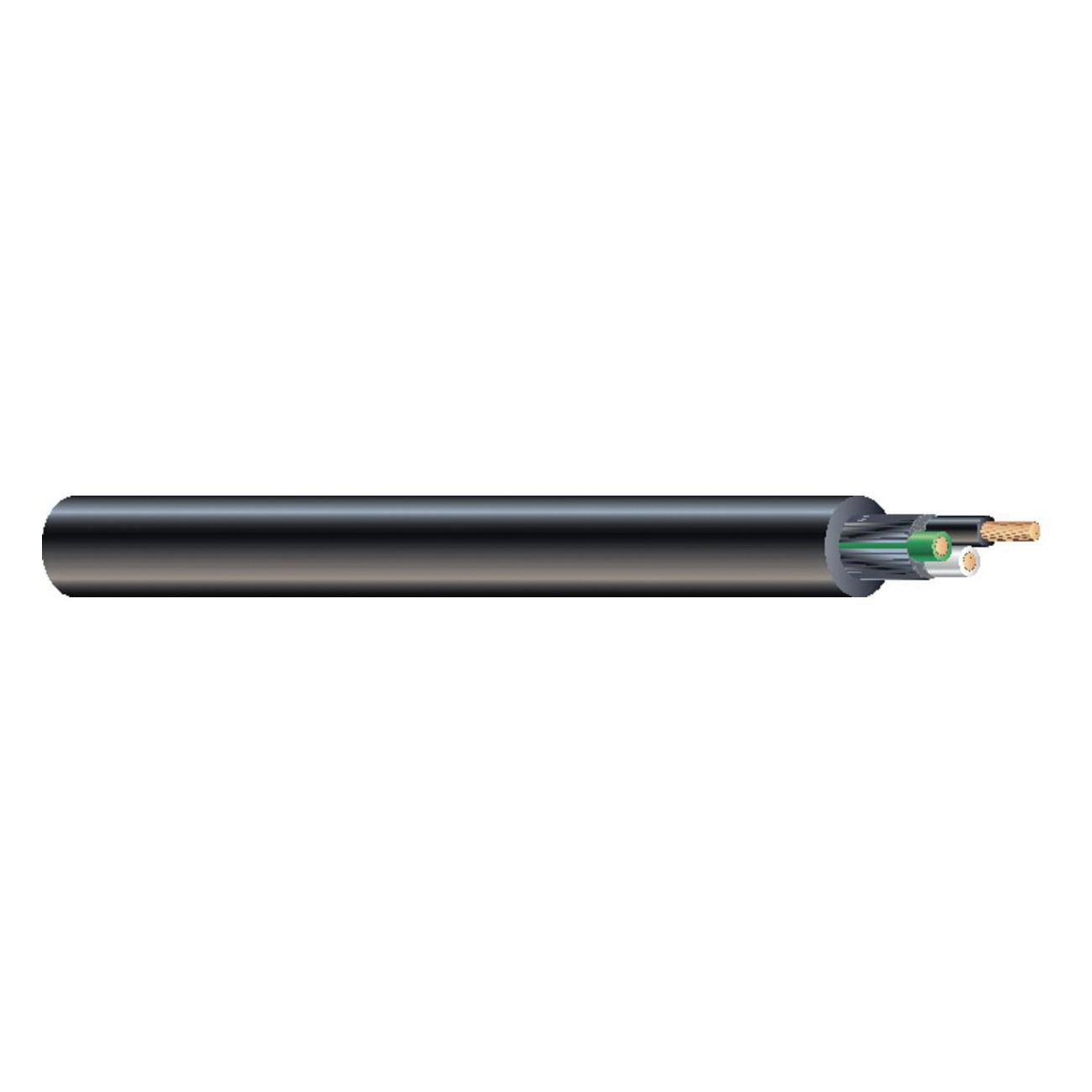

WIRE 6/3 SOOW BLACK
SOOW Flexible Cord, Reel Packaging, 600 VAC, (3) 6 AWG Annealed Bare Stranded Copper Conductor, 500 ft L
Brand: WIRE
Item ID: 67114
MPN: 6/3 SOOW BLACK
Login for Price
Features
- Provides moisture and oil-resistance
- Water, oil, weather and sunlight resistant
- Resistant to acid, impact, abrasion, flame and high temperature
Description
SOOW flexible cords are manufactured using bare flexible rope-stranded annealed copper conductors with a heat, moisture, ozone and oil resistant EPDM rubber insulation. The insulated conductors are cabled with paper fillers. A tissue-paper separator is wrapped around the assembly to promote easy removal of the jacket. A heat, moisture and oil resistant flexible CPE jacket is extruded over the assembly.
SOOW Flexible, Reel Packaging, 600 VAC, 55 A, 3 Conductors, Annealed Bare Stranded Copper Conductor, 6 AWG Conductor, 0.73 in OD, 500 ft Length, 133 Strands, EPDM Insulation, Chlorinated Polyethylene Jacket, Black Jacket, -40 to 90 deg C
Specifications
Amperage Rating |
55 A |
Conductor Size |
6 AWG |
Conductor Type |
Annealed Bare Stranded Copper |
Insulation Material |
EPDM |
Jacket Color |
Black |
Jacket Material |
Chlorinated Polyethylene |
Length |
500 ft |
Number of Conductors |
3 |
Outside Diameter |
0.73 in |
Packaging Type |
Reel |
Strands |
133 |
Temperature Rating |
-40 to 90 deg C |
Type |
Type SOOW Flexible |
Voltage Rating |
600 VAC |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Indoor, Outdoor, Industrial Equipment, Heavy Tools, Battery Chargers, Portable Lights, Power Extensions |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_55810006_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_55810006_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_55810006_Specification_Sheet.pdf
VIDEO LINK
https://www.youtube.com/watch?v=QZnxfw1yjKI
WIRE 6/3 SOOW BLACK
