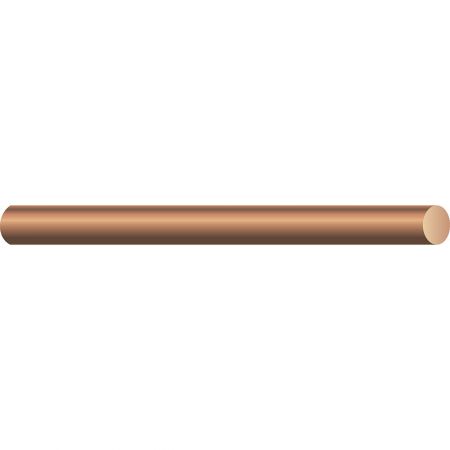

WIRE 8 BARE CU SOLID - 1000FT
8 Bare CU Solid 1000ft: Uncoated copper wire ideal for reliable grounding and bonding applications.
Brand: WIRE
Item ID: 372455
MPN: 8 BARE CU SOLID - 1000FT
Login for Price
Features
- Highest conductivity per unit are or all common commercial metal
- Flexible, easily worked and formed into place
- Packaged or non-returnable spools for easy transportation to job sites and to provide adequate footage for mass installation
- Good fatigue resistance, not subject to breaks due to nicks or cuts when terminating
- Totally recyclable with high scrap value
Description
Bare Copper Wire, Reel Packaging, 600 VAC, 1 Conductor, Bare Solid Copper Conductor, 8 AWG Conductor, 0.1285 in OD, 1000 ft Length, 0.6408 Ohm Resistance
Specifications
Conductor Size |
8 AWG |
Conductor Type |
Bare Solid Copper |
Length |
1000 ft |
Number of Conductors |
1 |
Outside Diameter |
0.1285 in |
Packaging Type |
Reel |
Resistance |
0.6408 Ohm |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL Listed|ASTM-B3, B8, B787 Master Specification Division 26 Sections 260519, 26052|Buy American Act Compliant |
Application |
Commercial, Overhead Electrical Transmission and Distribution System Applications |
