WIRE 8 PV PHOTOVOLTAIC RED
8 AWG PV Photovoltaic Wire, Red – UV and weather-resistant for efficient solar installations
Brand: WIRE
Item ID: 544083
MPN: 8 PV PHOTOVOLTAIC RED
Login for Price
Description

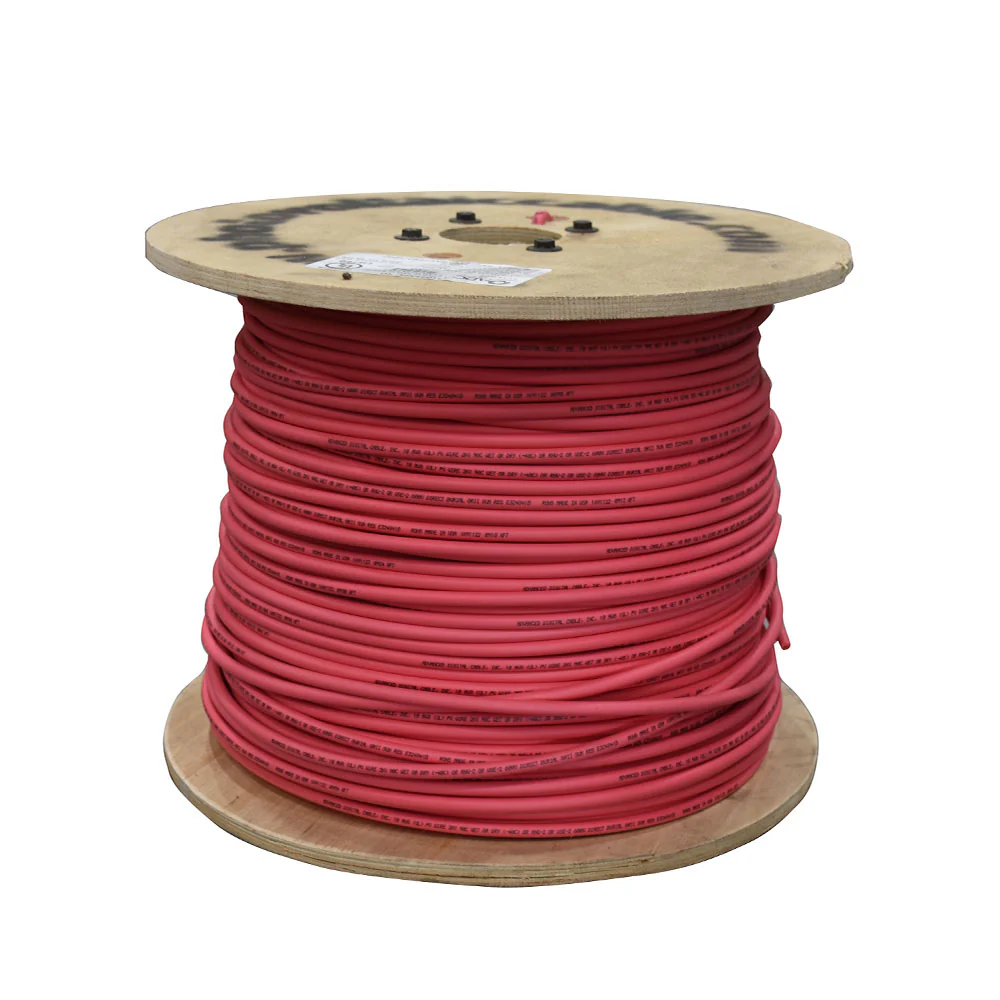

Photovoltaic Wire, Reel Packaging, 1000/2000 VAC, 55 A, 1 Conductor, Stranded Copper Conductor, 8 AWG Conductor, 0.313 in OD, 1000 ft Length, 7 Strands, Polyethylene Insulation, PVC Jacket, Red Jacket, 90 deg C
Specifications
Amperage Rating |
55 A |
Conductor Size |
8 AWG |
Conductor Type |
Stranded Copper |
Insulation Material |
Polyethylene |
Jacket Color |
Red |
Jacket Material |
PVC |
Length |
1000 ft |
Number of Conductors |
1 |
Outside Diameter |
0.313 in |
Packaging Type |
Reel |
Strands |
7 |
Temperature Rating |
90 deg C |
Voltage Rating |
1000/2000 VAC |
Standard Approval |
Buy American Act Compliant|RoHS Compliant |
