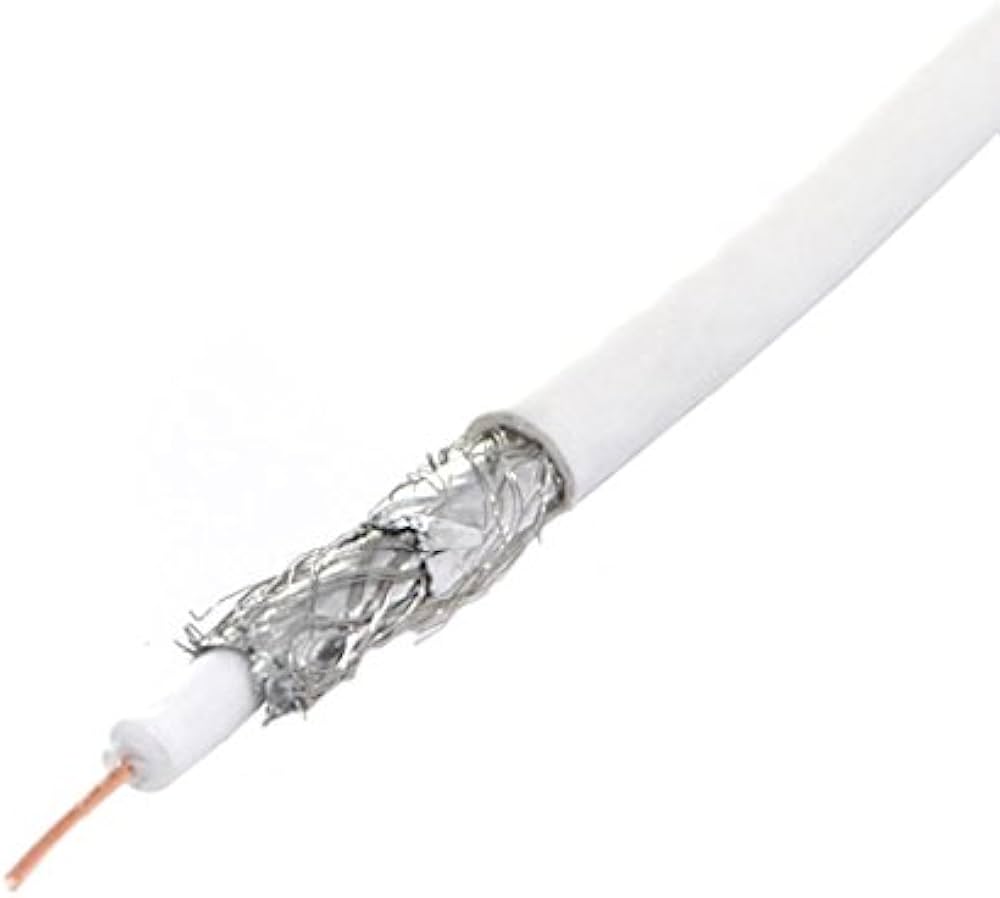

WIRE RG6 QUAD SHIELD WHITE
RG6 Non-Plenum Coaxial Cable, 150 VAC, (1) 18 AWG Copper Clad Steel Conductor, 1000 ft L
Brand: WIRE
Item ID: 190387
MPN: RG6 QUAD SHIELD WHITE
Login for Price
Features
- Foam polyethylene color natural dielectric
- 100% bonded polyester/aluminum tape plus 40% aluminum braid shielding 1 and 2, 100% polyester/aluminum tape plus 60% aluminum braid shielding 3 and 4
Description
Our product offering provides cable solutions for virtually every security and home technology application. Coleman Cable technical expertise and commitment to innovation ensure the most advanced and highest quality security, home technology and datacom cable in the market.
RG6 Non-Plenum, 150 VAC, 3 GHz Frequency, 1 Conductors, Copper Clad Steel Conductor, 18 AWG Conductor, 0.3 in OD, 1000 ft Length, 17 pF Capacitance, 75 Ohm Impedance, 14.61 dB Attenuation, PVC Jacket, CATV/CM Jacket Rating Code, Quad Shield, White, 60 deg C
Specifications
Attenuation |
14.61 dB |
Capacitance |
17 pF |
Color |
White |
Conductor Size |
18 AWG |
Conductor Type |
Copper Clad Steel |
Frequency Rating |
3 GHz |
Impedance |
75 Ohm |
Jacket Material |
PVC |
Jacket Rating Code |
CATV/CM |
Length |
1000 ft |
Number of Conductors |
1 |
Outside Diameter |
0.3 in |
Shield Type |
Quad |
Temperature Rating |
60 deg C |
Type |
Type RG6 Non-Plenum |
Voltage Rating |
150 VAC |
Standard Approval |
RoHS Compliant|ETL Listed|NEC Article 725|800|820|UL 444 |
Application |
CATV Applications |
Documentation
