What Are Electronic Ballasts & How Do They Work?

Updated: August 13, 2025

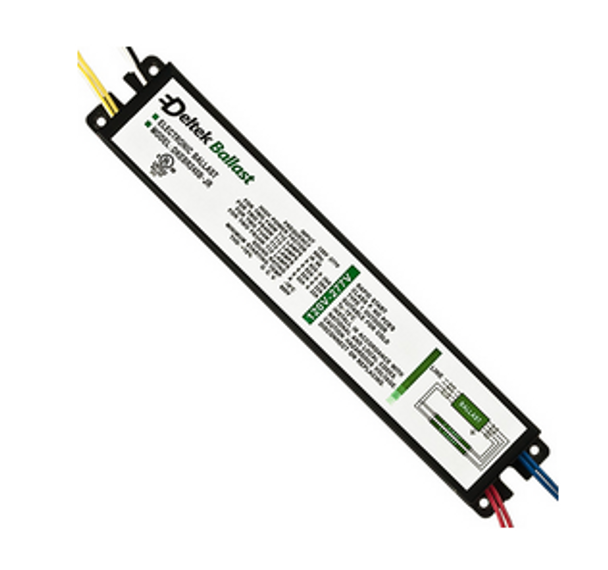

An electronic ballast controls voltage and current for fluorescent lamps and some HID systems. LEDs do not use ballasts: they use LED drivers, except for specific UL Type A retrofit tubes designed to run on an existing electronic fluorescent ballast. For a quick primer on what ballasts and drivers do, see the industry overview from NEMA and the lamp-type guidance in the DLC V5.1 testing rules for linear replacement lamps.

Key benefits of electronic ballasts

• Lower energy use: Typical magnetic-to-electronic fluorescent retrofits often deliver ~30–45% system savings, depending on lamp/ballast pairing and ballast factor (see the planning-watts example below for a ~42% case).

• Flicker and noise greatly reduced: Electronic ballasts run lamps at high frequency (about 20–60 kHz), which mitigates visible flicker and audible hum. A representative spec is “>42 kHz” on the Advance ICN family (LRC T8 guidance, Advance ICN spec).

• Lamp life support: Programmed-start electronic ballasts preheat electrodes before striking the arc, which helps in frequent-switching applications such as occupancy-sensor control (Philips/Advance ballast fundamentals).

➡️ Ready to replace failed fluorescent gear? Browse Revco’s electronic fluorescent ballasts.

How much energy can you save?

Baseline: Magnetic fluorescent systems operate at 60 Hz and have higher ballast losses. Electronic systems drive lamps at high frequency with lower losses (LRC overview).

Example (two-lamp troffers, planning values):

• Existing: 200 fixtures with 2-lamp F40T12 + magnetic gear at 97 W per fixture.

• Retrofit: 2-lamp F32T8 + electronic at 56.32 W per fixture.
  (Representative Ameren Illinois “Typical Lighting Wattages” planning table.)

Annual savings (3,000 hours):
200 × (97 − 56.32) W × 3,000 h = 24,408 kWh avoided.
At $0.15/kWh, that is roughly $3,661/yr. Adjust the rate to match your utility bill.

Electronic vs. magnetic: quick comparison

(Performance varies by lamp–ballast combination; confirm with manufacturer data such as the Advance ICN family spec.)

A note on LEDs: ballast or driver?

Most LED luminaires use an LED driver, not a ballast. Linear LED tubes come in types:

• UL Type A: runs on an existing electronic fluorescent ballast; always check ballast compatibility on the lamp’s spec sheet.

• UL Type B: ballast-bypass with internal driver and fixture rewiring.

• UL Type C: external driver replaces the ballast, enabling features like 0–10 V dimming.

The DLC policy requires Type A and A/B (dual-mode) lamps to be tested as lamp-plus-ballast systems, while Type C is tested with its external driver (DLC V5.1 testing rules).

Best applications for electronic ballasts

• Offices and schools: quiet, stable light improves comfort and reduces visible flicker compared with 60 Hz magnetic systems (LRC advantages).

• Warehouses and industrial spaces: choose programmed-start for occupancy-sensor operation and frequent switching (Advance fundamentals).

Maintaining HID gear? Explore Revco’s metal-halide ballasts and high-pressure sodium ballasts.

How to upgrade from magnetic to electronic ballasts

• Check compatibility: Match the ballast to your lamp type and count, or confirm that your LED tube is Type A and listed for your specific ballast model (DLC treats Type A/A+B as lamp-plus-ballast systems; see the DLC V5.1 guidance).

• Select the right voltage and features: Many electronic ballasts support 120–277 V, and dimming options are available—confirm in the datasheet (e.g., Advance ICN spec).

• Upgrade in phases: Start with longest-hour areas for the fastest payback.

• Follow installation rules: De-energize, follow the wiring diagram, and add a disconnecting means when required. NEC 2023 410.71 (for indoor locations other than dwellings) requires a disconnect for fluorescent or LED luminaires with double-ended lamps when the ballast or driver can be serviced in place; local adoption and the AHJ govern enforcement (see this NEC 410.71 explainer).
  • If you perform ballast-bypass (Type B) or external-driver (Type C) retrofits, follow UL 1598C retrofit-kit instructions and apply the provided re-labeling so the modified luminaire is clearly identified (UL’s overview: Safety compliance of luminaire retrofits).

• Track results: Log fixture counts, hours, and wattages to validate kWh savings against bills; the planning watts in this article come from Ameren Illinois’ Typical Lighting Wattages guide.
