Motor Control Accessories: Enhancing Performance and Safety for Long Island Jobsites

Updated: August 29, 2025

~7 min read • ~1,300 words • Flesch ~60


TL;DR: Pick accessories as a coordinated set: protection sized from nameplate FLA, controller matched to the load profile, control power with inrush headroom, and an enclosure that survives the environment. Verify SCCR, working clearances, and disconnect placement per NEC 2023. Document settings and test under Lockout/Tagout. When in doubt, involve the AHJ early.

Why this matters

Motors do most of the hard work on a job. Accessories around the motor controller decide whether that work is smooth, safe, and efficient, or a headache that eats profit. Good accessory choices cut inrush, limit faults, and keep crews out of harm’s way. They also help you meet inspection with fewer callbacks, which matters when schedules are tight on Long Island.

From a simple pump panel to a multi-drive air handler, the right mix often includes contactors, overloads, soft starters, drives, disconnects, and pilot devices. Sizing and coordination affect everything: arc energy, nuisance trips, and uptime. If you need hardware fast, you can start with industrial contactors and build the rest of the bill from there.

Fundamentals

  • Overload protection: Thermal or electronic overload relays track motor current and trip before the windings overheat. Many VFDs provide integral electronic overload as well.
  • Short-circuit and ground-fault protection: Fuses or breakers protect conductors and equipment during faults. Pick a device with an interrupting rating that matches the available fault current at the panel.
  • Controller: Across-the-line starters, soft starters, or VFDs. Soft starters reduce mechanical stress at startup. VFDs control speed and save energy on variable-torque loads.
  • Control power: Control transformers or power supplies support coils, PLC I/O, and safety circuits. Size for steady-state plus inrush of all devices.
  • Pilot devices and interlocks: Start/stop, selectors, estops, auxiliary contacts, door interlocks, and monitoring relays improve usability and safety.
  • Enclosure and environment: Choose NEMA rating for the space: indoor dry, wet locations, washdown, dust, or corrosives. Gaskets, drains, and space heaters help fight condensation.

For replacement logic or interposing functions, shop control relays to match coil voltage and contact ratings.

Code & compliance (NEC 2023)

Plan your accessory set with the Code in mind, then confirm with the local Authority Having Jurisdiction. On Long Island, towns and villages may amend adoption or add permitting rules. Always verify before you pull wire.

  • Working space and access: Provide clearances per NEC 110.26.
  • Industrial control panels: Markings and SCCR per NEC 409. Include a nameplate that lists voltage, current, and SCCR.
  • Motors and controllers: NEC 430 is your backbone. Use 430.31–430.32 for overload protection, 430.52 for short-circuit and ground-fault protection, 430.83 for controller ratings, 430.102 for disconnecting means, and 430.124 for drives with integral overload functions. Coordinate device ratings so the branch circuit can clear a fault without damaging components. [1]
  • Lockout/Tagout: Establish and follow LOTO procedures during install and service. See OSHA 1910.147. [2]
  • Drives safety and construction: Adjustable speed drives are covered by product standards such as UL 61800-5-1. Use listed equipment and follow the manufacturer’s installation manual. [3]

AHJ note: Submit cut sheets and a one-line diagram when required. For larger projects, coordinate with the plan reviewer early, especially when SCCR or harmonic mitigation is in play.

Selection steps

  1. Confirm the load profile. Is it constant or variable torque. Pumps and fans often benefit from VFDs, while conveyors may be fine with a soft starter or across-the-line if the process allows.
  2. Gather motor data. Nameplate horsepower, voltage, full-load amps, service factor, ambient temperature, and duty cycle. Use this to set overload trip and pick coil/control voltages.
  3. Choose the controller type. Across-the-line starter for simple, constant-speed loads. Soft starter for lower inrush and gentler starts. VFD for speed control, ramping, and energy savings on variable torque loads. [4]
  4. Size protection devices. Pick fuses or breakers to meet NEC 430.52 and coordinate with the starter or drive. Verify available fault current and make sure the enclosure assembly SCCR is adequate.
  5. Select the overload device. Thermal or electronic, with an adjustable range that covers 115–125 percent of motor FLA unless the manufacturer specifies otherwise. For VFDs, decide whether to use the drive’s electronic overload per 430.124 or an external device. [1]
  6. Define control power. Add up coil VA, pilot devices, indicator lights, and any PLC or safety relay loads. Size the control transformer with headroom for inrush.
  7. Pick the enclosure. Match the space: indoor dry, rooftop, boiler room, washdown, or near salt air. Consider corrosion protection and gasketing. Provide working clearances per 110.26 and labeling per 409.
  8. Add the disconnect and estop. Place a lockable, visible-blade disconnect where required by 430.102. Use red mushroom estops where the risk analysis calls for them. You can source heavy-duty safety switches sized for the feeder.


Sizing and configuration examples (with math)

Example 1: 15 hp, 460 V, three-phase pump on a VFD

  • Given: Nameplate FLA = 21 A; variable-torque load; indoor mechanical room.
  • Drive selection: Choose by current, not just horsepower. Required output ≥ 21 A. Nearest standard is a drive rated 25–30 A continuous. This provides thermal headroom for ambient and ducted enclosures. See the manufacturer’s table and UL 61800-5-1 listing. [3]
  • Overload protection: Use the drive’s electronic overload function when allowed by NEC 430.124. Trip setting = 115% of FLA unless the motor or drive instructions require otherwise: 1.15 × 21 A = 24.15 A. Round to the nearest supported value, typically 24.2 A. [1]
  • Branch short-circuit protection: Time-delay fuses sized within the limits of NEC 430.52 and the drive manual. Using a common 175% example for motors: 1.75 × 21 A = 36.75 A. Next standard fuse is 40 A. Confirm with the drive’s published maximum upstream protection. [1]
  • Conductors: Size per NEC motor conductor rules using 125% of FLA: 1.25 × 21 A = 26.25 A. Select copper conductors with ampacity ≥ 26.25 A under the installed conditions. For help, see our wire gauge selection guide.
  • Control power: Sum steady VA plus inrush. Example loads: contactor coil 10 VA running (30 VA inrush), three pilot lights at 5 VA each, safety relay 4 VA. Running VA = 10 + 15 + 4 = 29 VA. Inrush dominated by the coil (~30 VA). Choose a control transformer at least 3× the running VA for margin. 100 VA is a practical standard size.
  • Enclosure: Indoor mechanical room with occasional moisture. Pick a gasketed NEMA 12 panel and include a drip shield if needed. If you’re unsure, review our NEMA enclosure ratings explainer.

Example 2: 7.5 hp, 208 V, three-phase blower, across-the-line starter

  • Given: Nameplate FLA = 24 A; constant-speed process; rooftop location.
  • Starter and overload: IEC contactor + adjustable electronic overload. Initial setting: 115% of FLA = 1.15 × 24 A = 27.6 A. Select an overload range that includes 27.6 A and fine-tune during commissioning. [1]
  • Branch short-circuit protection: Within NEC 430.52 limits and starter ratings. Example with time-delay fuses: 1.75 × 24 A = 42 A. Next standard size 45 A. Verify the assembled panel’s SCCR and component ratings. [1]
  • Conductors: 125% of FLA = 1.25 × 24 A = 30 A. Select copper conductors with ampacity ≥ 30 A considering ambient and rooftop bundling. See the wire gauge selection guide for ampacity basics and derating notes.
  • Disconnect: Provide a lockable, visible-blade switch within sight of the motor per NEC 430.102 requirements. Stock heavy-duty safety switches sized for the feeder. [1]
  • Enclosure: Rooftop means weather exposure. Use NEMA 3R or 4X as required. Consider space heaters to fight condensation and stainless hardware for salt air.

Installation and wiring notes

  • Segregate power and control. Route 480 V motor leads away from 120/24 V control wiring. Cross at right angles where needed. Keep VFD output leads in their own conduit if possible.
  • Use shielded cable on VFD outputs when specified by the drive manual. Terminate shields per the manufacturer to control EMI.
  • Grounding and bonding: Bond enclosures and raceways; land equipment grounds on a dedicated bar. Keep drive bonding conductors short and direct.
  • Line reactors and filters: For long motor leads or sensitive nearby equipment, follow the drive manual on input reactors or dv/dt filters. This helps reduce nuisance trips and bearing stress. [3][4]
  • Labeling and SCCR: Provide a clear nameplate with voltage, FLA, and SCCR per NEC 409. Keep a laminated one-line inside the door.
  • Working clearances: Maintain depth and width clearances per NEC 110.26. Don’t block panel doors with piping or ductwork.
  • Right box for the job: If you’re adding feeders or breakers near the controller, consider proper circuit breaker enclosures with the correct rating and space for wire bend.

Testing, commissioning, documentation

  • Lockout/Tagout: Apply LOTO before tests or terminations. Use a written procedure that meets OSHA 1910.147. [2]
  • Insulation and continuity: Verify torque on terminations. Test insulation resistance on the motor leads as permitted by the equipment manufacturer.
  • Rotation and function: Bump the motor to confirm rotation. Test estops, door interlocks, and overload trips. For VFDs, run an autotune and verify min/max speed limits. Record all setpoints.
  • Handover docs: Place copies of the one-line, drive parameters, and overload settings inside the panel. Keep digital copies with the job folder.
  • If issues pop up: start with the basics or see our quick troubleshooting guide for contractors.

Troubleshooting

  • Motor will not start: Verify LOTO removed, line voltage present, control power on, estop released, and aux contacts closed. Check coil voltage matches the contactor.
  • Nuisance overload trips: Compare overload setting to nameplate FLA and service factor. Look for single-phasing, blocked filters, tight ducts, or high ambient in the enclosure. On VFDs, confirm autotune and motor nameplate data.
  • Instantaneous trips or fuse blows: Inspect for shorted leads, nicked insulation at lugs, or miswired starter legs. Verify short-circuit device size and class per 430.52 and panel SCCR.
  • VFD faults: Overcurrent suggests too aggressive accel/decel or mechanical binding. Overvoltage on decel points to regenerative load; add a brake chopper or extend ramp. Ground fault often traces to damaged cable or moisture at the motor head. [1][3][4]
  • Contactor chatter: Wrong coil voltage, weak control power, or a failing control transformer. Measure coil voltage under load.
  • EMI and sensor noise: Separate power and control, bond shields per the manual, and consider output filters for long motor leads. [3][4]

Common mistakes

  • Setting electronic overloads from breaker size instead of motor FLA.
  • Ignoring available fault current and ending up with an assembly SCCR below the service.
  • Mixing 120 V and 24 V control without clear labeling or proper interposing relays.
  • Skipping reactors or filters on long VFD leads and then chasing nuisance trips.
  • Choosing the wrong NEMA rating for rooftops, washdown, or salt air.
  • Undersizing the control transformer and starving coils during inrush.
  • Placing the disconnect out of sight from the motor when NEC 430.102 requires it to be within sight. [1]

Parts to stock

  • IEC contactors in common frame sizes plus spare coil kits.
  • Adjustable overload relays that cover typical FLA ranges.
  • Auxiliary contacts, 22 mm operators, pilot lights, and red mushroom estops.
  • Time-delay fuses in the classes your panels use, plus spare fuse blocks.
  • Control transformers or DIN power supplies with 50 to 150 VA ratings.
  • Terminal blocks, ferrules, DIN rail, wire markers, and laminated one-line sleeves.

Shop: Build your kit from our motor control accessories and keep crews moving.

When to call the AHJ or an engineer

  • Large horsepower or multiple drives on one feeder that raise SCCR or coordination questions.
  • Hazardous locations, washdown food areas, or spaces with corrosive chemicals.
  • Long motor leads that need dv/dt filters or sine filters per the drive manual. [3]
  • Harmonics that may affect generators, UPS, or sensitive medical equipment.
  • Any local adoption updates or amendments on Long Island. File drawings, cut sheets, and one-lines when requested by the plan reviewer.

Safety disclaimer

This guide is for licensed professionals. Follow NEC 2023, OSHA 1910.147 for LOTO, and all manufacturer instructions. The AHJ has final say on your project. If you are uncertain, stop and get a review. [1][2]

FAQ

  • Do I still need an external overload with a VFD? Often no. NEC 430.124 permits the drive’s integral electronic overload when installed per the listing and instructions. Check the manual. [1]
  • Soft starter or VFD for fans and pumps? VFDs save energy on variable-torque loads and add speed control. Soft starters reduce inrush and mechanical stress but run the motor at line frequency. [4]
  • What sets my short-circuit protection size? NEC 430.52 and the equipment instructions. Match device class, let-through, and the panel SCCR. [1]
  • Where must the disconnect go? Within sight of the motor unless an exception applies, and it must be lockable. See 430.102. [1]
  • How do I protect rooftop gear on Long Island? Use NEMA 3R or 4X as needed, stainless hardware, space heaters for condensation, and seal entries against wind-driven rain.
  • Do I need harmonics mitigation? Maybe. Check for overheating neutrals, sensitive loads, or generator operation. The engineer may specify reactors or filters. [3][4]

About Revco Lighting & Electrical Supply

Since 1978, Revco Lighting & Electrical Supply has been helping professionals bring their projects to light—literally. As a go-to source for lighting and electrical products across Long Island, NY and nearby areas, we specialize in supporting contractors, builders, and industry experts with practical solutions and dependable service. Whether it’s a complex commercial build or a simple residential upgrade, we’re here to make sure you have what you need, when you need it.

Sources

  1. NFPA. NFPA 70, National Electrical Code (NEC), 2023 edition. Accessed August 2025.
  2. OSHA. 29 CFR 1910.147, The control of hazardous energy (Lockout/Tagout). Accessed August 2025.
  3. UL Standards & Engagement. UL 61800-5-1, Adjustable Speed Electrical Power Drive Systems. Accessed August 2025.
  4. Rockwell Automation. Soft Starter or Variable Frequency Drive white paper. Accessed August 2025.

Credits

Author: Revco Editorial Team — Electrical Content Editor
Technical review: Pending — add approved name/credential
Contact: Revco Lighting & Electrical Supply, (631) 283-3600

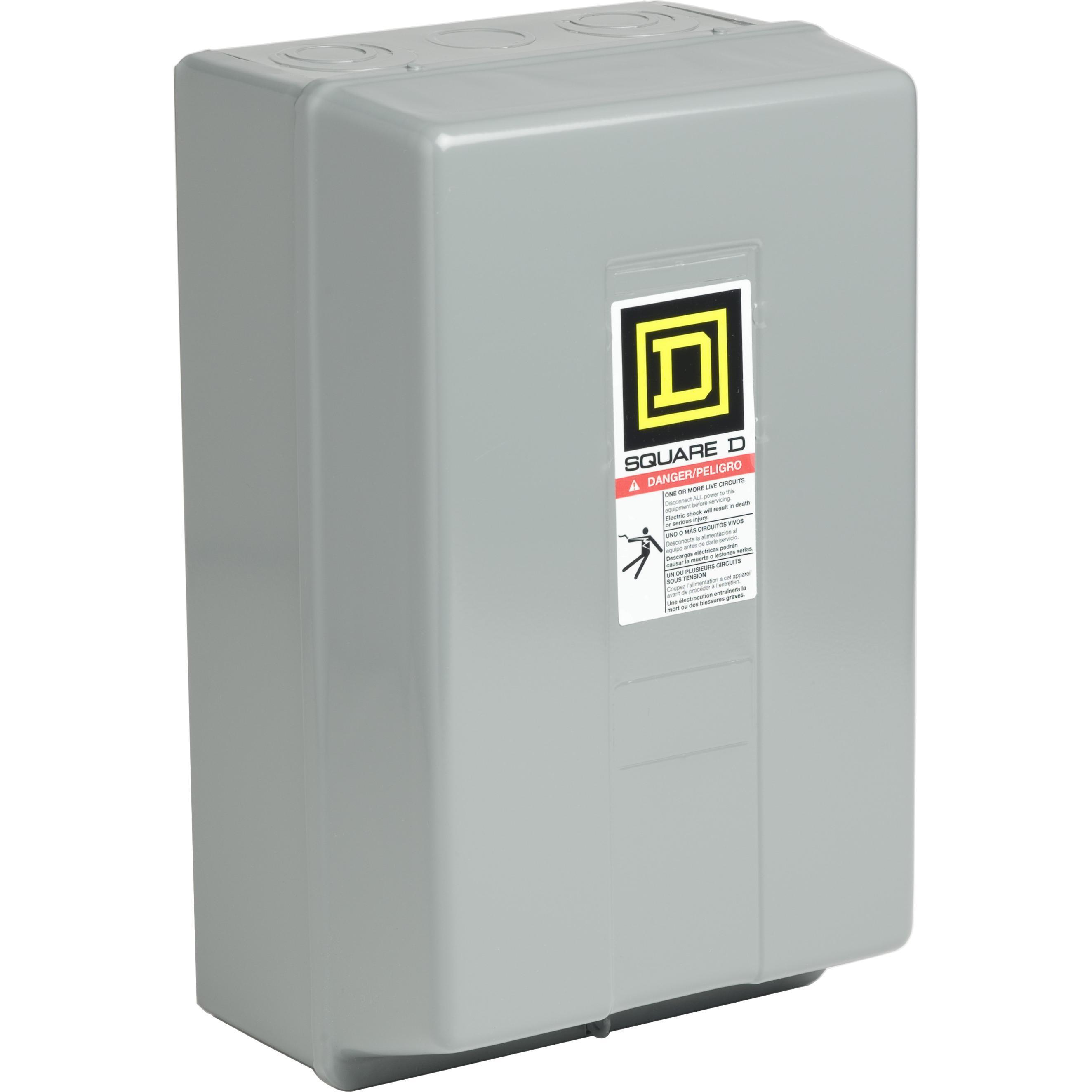

motor control case
