The Importance of Choosing the Right Control Station


Posted on Wednesday Jan 22, 2025 at 06:44PM in Educational Resources



The Importance of Choosing the Right Control Station

Updated: August 29, 2025

~7 min read • ~1,300 words • Flesch ~60

Why it matters

The control station is the front door to your machine. Get it right and operators work faster, safer, and with fewer mistakes. Get it wrong and you burn hours chasing nuisance trips, failed inspections, and preventable downtime. On Long Island, salt air, humidity, and freeze–thaw cycles are not kind to cheap hardware. Specifying the right enclosure, devices, and labels up front keeps work sites moving and keeps your punch list short.

Need a fast starting point for parts and assemblies? Browse our industrial control products for pushbuttons, selector switches, pilot lights, and predrilled enclosures that match common field needs.

Fundamentals

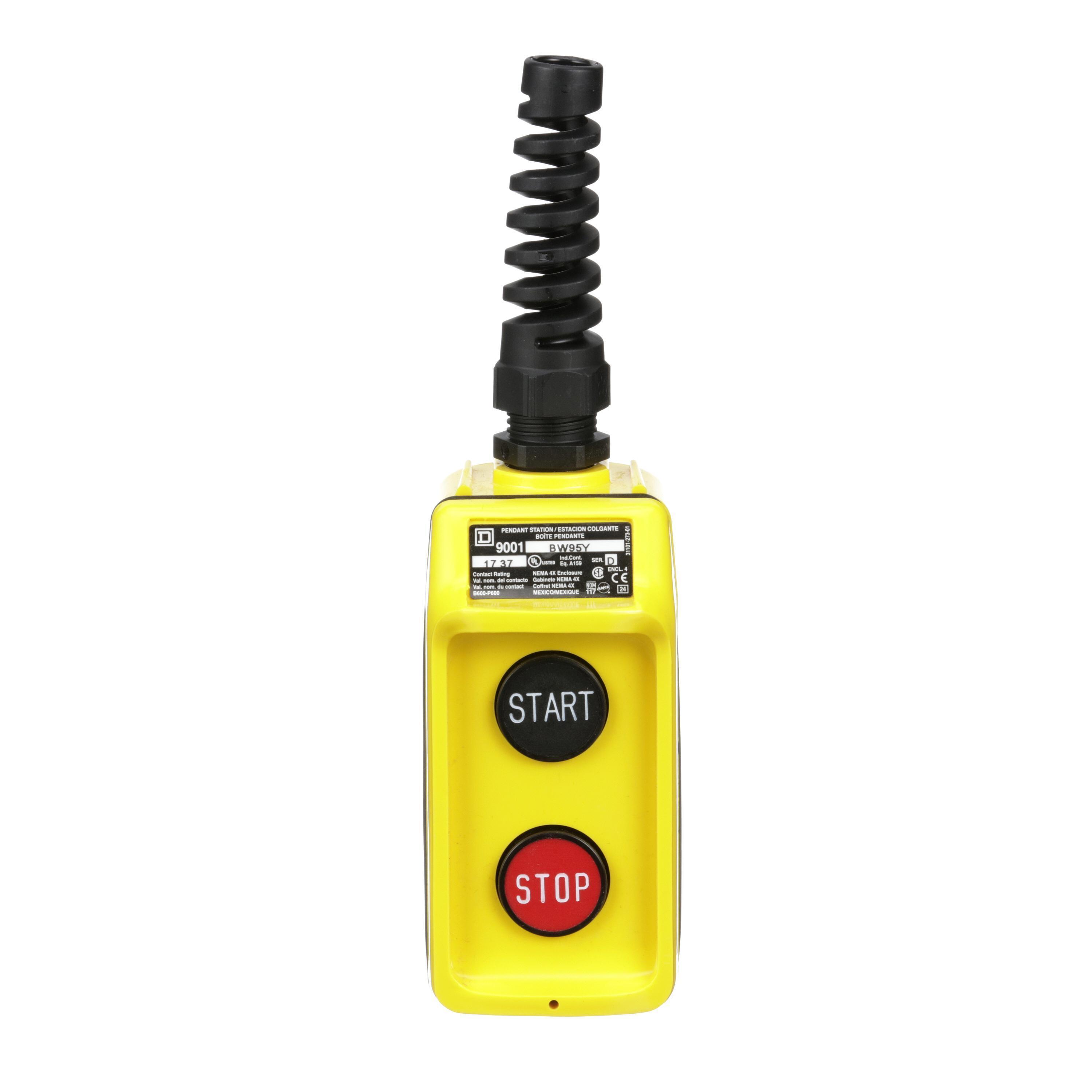

A control station is the human interface for a machine or process. Typical devices include momentary or maintained pushbuttons, selector switches, pilot lights, and emergency stop devices. These mount in an enclosure that protects wiring and contact blocks. Your first fork in the road is the environment: ordinary location or hazardous location. Ordinary areas use standard NEMA enclosures. Classified areas require equipment specifically listed for the class and division or zone.

Enclosure choices do the heavy lifting for durability. Common NEMA types you will see in the field are 1 (indoor dry), 3R (outdoor rain), 4 and 4X (watertight, 4X adds corrosion resistance), and 12/13 (dust, oil, noncorrosive coolant). For coastal Long Island sites, 4X stainless or nonmetallic often pays for itself in reduced corrosion maintenance.

Device basics: choose contact block ratings to match the control circuit voltage and current, specify normally open vs normally closed per the logic, and confirm illumination voltage for pilot lights. When a machine requires an emergency stop, use a red, mushroom-head operator with positive-opening contacts and a twist or key to release as required by the design.

Helpful primers: our NEMA enclosure ratings guide and this quick pushbutton and pilot light overview cover the basics contractors ask about most.

Code & compliance (NEC 2023 refs)

  • Use equipment per listing and labeling. NEC 110.3(B). Do not mix-and-match parts in a way the listing does not allow.
  • Maintain working space. NEC 110.26 applies to equipment that requires examination, adjustment, or maintenance while energized. Stations near panels still need clearances respected.
  • Industrial control panels. If the station is part of, or mounted on, a control panel, apply NEC 409 for scope and marking. Many panels are built to UL 508A; follow the panel shop’s markings.
  • Disconnecting means in sight. NEC 430.102 requires a disconnect within sight of the motor location and controller. The control station is not the disconnect.
  • Control circuits. See NEC 430 Part VII for control-circuit conductors and overcurrent protection, and NEC 725.136 for separation of Class 2/3 from power conductors.
  • Hazardous locations. If the station is in a classified area, apply NEC 500 through 505 as applicable and select only equipment listed for that location.

AHJ note for Long Island: Local amendments and adoption timing vary. Always confirm requirements with the Nassau or Suffolk County AHJ or village building department before ordering hardware. OSHA lockout/tagout rules still apply to servicing and commissioning.

Selection steps

Step 1: Environment and NEMA type. Start with where the station lives. Indoor dry can be NEMA 1. Outdoor exposure suggests 3R. Washdown or heavy spray needs 4 or 4X. Oily shop air often calls for 12. For brackish or coastal air, lean toward 4X.

Step 2: Circuit voltage and contact ratings. Verify control voltage for coils and pilot lights, then pick contact blocks with equal or higher ratings. Keep normally open and normally closed contacts straight to avoid backfeeding or nuisance trips.

Step 3: Functions and operators. List what the operator must do: Start, Stop, Jog, Forward/Reverse, Speed Up/Down, Fault Reset. Add an emergency stop if the risk assessment calls for it. Choose illuminated operators where feedback helps.

Step 4: Enclosure size and entries. Count devices and contact blocks, then select a box with room for bend radius, wire ferrules, and labeling. Preplan conduit or cord grips. Stainless hardware resists corrosion outdoors.

Step 5: Marking and documentation. Engraved legend plates, durable labels, and a simple schematic taped inside the cover save time later. Stock spare contact blocks and lamp modules to match the build. For replenishment, see control panel parts and accessories.


Sizing and configuration examples

Example 1: Pilot light VA check. A 120 V AC red pilot light rated 7 VA draws current I = VA/V = 7 VA ÷ 120 V = 0.058 A. Round to 0.06 A. Verify your control transformer can supply this plus any coil loads with 20% headroom.

Example 2: 24 V DC coil and contact rating. A relay coil at 24 V DC rated 0.18 A requires contact blocks that handle the control circuit voltage and inrush of the downstream device. If the Start button feeds that coil, choose a contact block with DC-13 type rating ≥24 V DC at ≥0.5 A to provide margin. Mark the contact as NO in the schematic.

Example 3: Control transformer sizing. One 24 V AC contactor coil at 8 VA and two 24 V AC pilot lights at 2 VA each total 12 VA. Add 25% spare = 15 VA minimum. Choose the next standard size (25 VA) to keep temperature rise reasonable. Stock replacements under control and power-supply transformers.

Installation and wiring notes

  • Listing and labeling apply. Per NEC 110.3(B), install devices and enclosures only as their instructions and markings allow.
  • Working clearances. If the station is mounted near equipment requiring access while energized, maintain clearances per NEC 110.26.
  • Grounding and bonding. Bond metal enclosures and use listed fittings. Keep door bonding jumpers short and protected.
  • Conductor separation. Maintain separation for Class 2/3 circuits per NEC 725.136. Use barriers or separate raceways as required.
  • Strain relief. Use listed cord grips or conduit fittings. Leave drip loops outdoors. Consider weather-rated enclosures when entries face weather.
  • Labels and legends. Engraved legend plates outlast stickers in washdown and coastal air.

Testing, commissioning, documentation

  1. Point-to-point check. Verify each device against the schematic before energizing. Confirm NO vs NC wiring.
  2. Functional test. Energize control power. Test Start/Stop, Jog, and indicator logic. Validate that E-stop drops power as designed and resets correctly.
  3. LOTO verification. Apply your facility’s procedure per OSHA 29 CFR 1910.147, verify zero energy, and document. Keep a copy in the panel folder.
  4. As-builts. Tape a dated schematic inside the cover and save a digital copy for closeout.

Troubleshooting

  • No start after E-stop. Latch requires mechanical reset. Check that the NC contact in the safety string is closed after reset.
  • Pilot light dim or dead. Wrong lamp voltage. Match lamp module to control voltage; measure actual voltage at the socket.
  • Nuisance trips on Start. Wrong contact type or bounce feeding a sensitive coil. Use proper DC-rated contacts or add a relay with suitable ratings. Stock spares under socket relays.
  • Corrosion. Outdoor coastal sites need NEMA 4X and stainless hardware. Replace rusted screws and add anti-seize on threads.

Common mistakes

  • Choosing NEMA 1 indoors where coolant or dust is present. Use 12 or 13.
  • Mixing Class 2 control conductors with power conductors without a barrier. See NEC 725.136.
  • Specifying an E-stop but wiring it as NO. Safety strings typically require NC contacts for fail-safe behavior.
  • Assuming the station counts as the motor disconnect. Provide a disconnect within sight per NEC 430.102.
  • Undersizing the control transformer; forgets coil inrush and lamp VA. Add 20–25% margin.

Parts to stock + Shop at Revco

When to call the AHJ or an engineer

Contact the local AHJ for hazardous locations, multi-motor machinery, integrated safety circuits, or when local amendments may change enclosure or disconnect requirements. On Long Island, towns and villages can add rules on top of NEC 2023. For complex or custom panels, consult a PE or a UL 508A panel shop early to avoid redesign.

Safety disclaimer

Always follow manufacturer instructions and your facility’s safety procedures. Confirm NEC 2023 requirements with the local AHJ before installation. For servicing and commissioning, follow OSHA lockout/tagout in 29 CFR 1910.147.

FAQ

Q: Do I need an emergency stop on every station?
A: Not always. Use the project’s risk assessment and applicable standards. When used, wire fail safe and verify operation during commissioning.

Q: What NEMA type should I pick outdoors?
A: Minimum 3R for rain. Use 4 or 4X for hose-down or coastal corrosion resistance.

Q: Can I mix Class 2 control wiring with 120 V conductors?
A: Only if barriers or listed assembly provisions meet NEC 725.136. Otherwise separate them.

Q: Does the control station replace the motor disconnect?
A: No. Provide a disconnect within sight per NEC 430.102.

Article credits

Author: Revco Editorial Team — Electrical Content Editor
Technical review: Pending — add approved name/credential
Contact: (631) 283-3600

Sources

  1. NFPA. “NFPA 70, National Electrical Code (NEC) 2023 Edition.” Retrieved 08-2025: nfpa.org
  2. NEMA. “ANSI/NEMA 250 Enclosures for Electrical Equipment.” Retrieved 08-2025: nema.org
  3. UL. “UL 508A Industrial Control Panels, Summary of Requirements.” Retrieved 08-2025: ul.com
  4. OSHA. “29 CFR 1910.147 The control of hazardous energy (lockout/tagout).” Retrieved 08-2025: osha.gov
