Understanding Overloads: Protecting Your Motors and Equipment

Updated: August 7, 2026

~5 min read • ~960 words • Flesch ~48

TL;DR: Overload relays protect motors from the heat damage that comes with running over their rated current. Common overload-relay types include thermal, magnetic, and electronic designs. Their trip characteristics, adjustment methods, and available protection features vary by product family. Choosing the right one starts with your motor's nameplate data, not a generic pick off the shelf. Installation, sizing math, and commissioning tests are an electrician's job. This guide covers what overload protection does, the types available, and what to bring to Revco or your electrician for the right match.

Why this guide exists

Electrical motors keep your jobsite running. When they fail, you lose time, money, and reputation. This guide covers what overload protection does, why it matters, and how to pick the right type for your motor. Installation, sizing math, and commissioning tests are your electrician's call. This guide gets you ready for that conversation, not through it solo.

Browse overload relays under Revco's industrial control overloads category. Browse transformers under Revco's transformers category.

What is overload protection

Overload protection stops a motor from drawing too much current for too long. Extra current builds heat, and heat damages windings. Left unprotected, a motor can burn out its coils and take the whole job down with it.

Types of overload relays

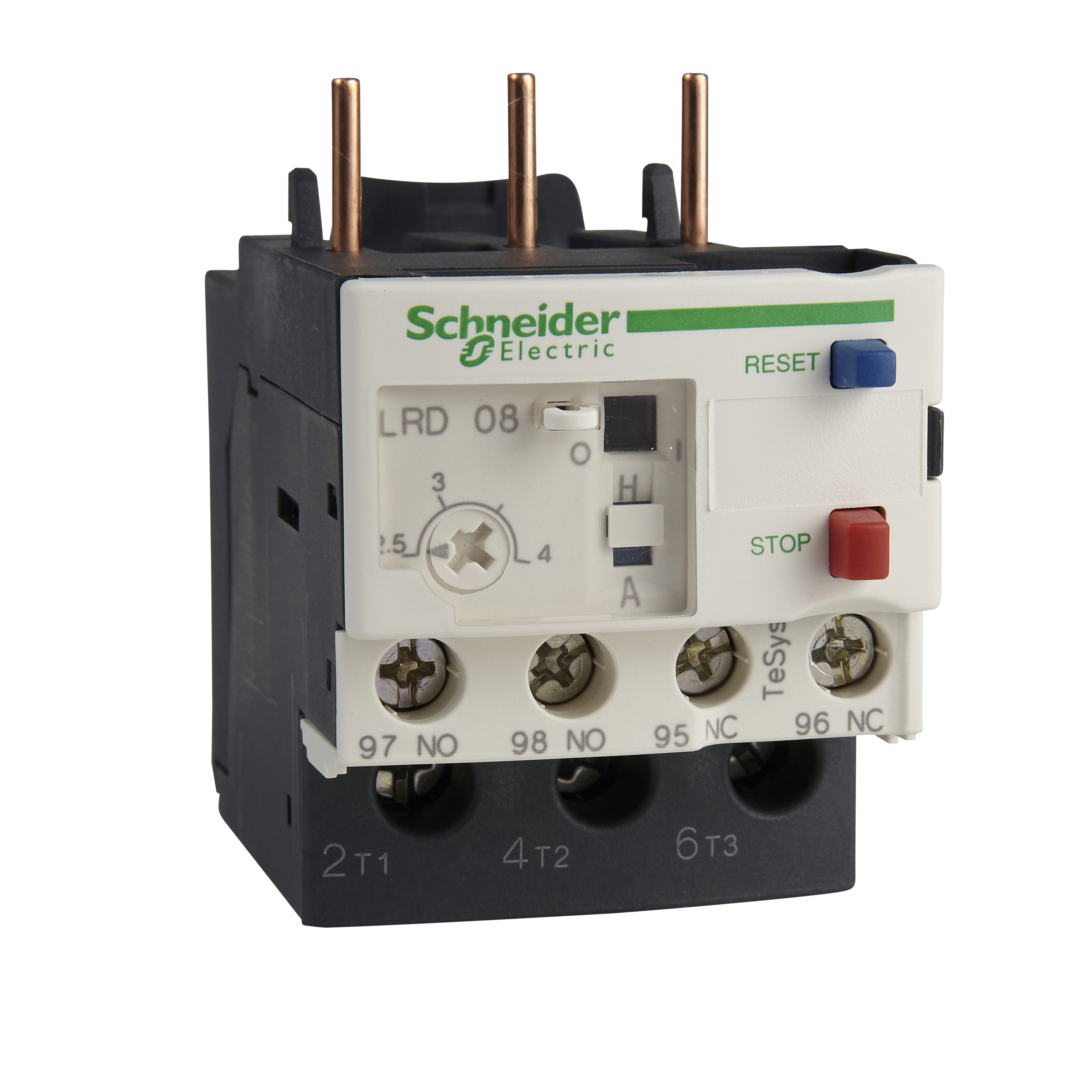

Thermal overload relays respond to motor-heating conditions using thermal elements. Depending on the product family, the design may use bimetallic elements, melting-alloy thermal units, or another approved thermal mechanism. Trip class, adjustment range, ambient compensation, and starter compatibility vary by product.

Magnetic overload relays use motor current through a coil to create magnetic force that moves an internal core and operates the trip contacts when the relay reaches its trip point. Use the manufacturer’s time-current characteristics and application data rather than treating magnetic overload protection as instantaneous short-circuit protection.

Electronic overload relays use electronic sensing and thermal modeling. Depending on the model, available functions may include adjustable trip class, phase-loss or phase-imbalance protection, ground-fault protection, diagnostics, and communications. Confirm the exact functions and ratings in the manufacturer documentation.

For background on contactors and control relays generally, see Revco's Contactors vs. Relays guide.

Why it matters in the field

A failed motor costs real time and money. You are looking at an emergency service call, a rush order on a replacement, and downtime while you wait. Overload protection is cheap insurance against all three. Motor overload protection is addressed by the National Electrical Code, while applicable product and equipment standards govern the devices and assemblies used. A licensed electrician or panel shop should confirm the requirements that apply to the motor, controller, equipment, and jurisdiction.

Selection considerations

Gather your motor's nameplate data first: full-load amps, locked-rotor amps, and service factor. Bring this to Revco or your electrician.

Note the environment. Ambient temperature swings, altitude, vibration, and humidity all affect which relay type and settings fit, and your electrician factors these in during sizing.

Confirm the relay family and compatibility. Match the overload relay to the approved starter or controller, motor data, application requirements, trip characteristics, and manufacturer compatibility information rather than choosing from a generic rule of thumb.

Confirm panel fit. Check DIN-rail mount, terminal arrangement, and enclosure space before you order.

Let your electrician handle coordination. Matching upstream fuses or breakers to the overload relay, and any code-required sizing math, is their call.

Installation and commissioning

Installation, terminal torque, and commissioning tests, including trip verification, are electrician-level work. A licensed electrician or your panel shop torques terminals to spec, verifies trip settings against your motor's nameplate, and documents the results before the motor goes into service.

Signs it is time to call an electrician

• You are seeing nuisance trips on Start.
• The motor runs hot or hums more than usual.
• A relay will not trip during an actual overload condition.
• You see a diagnostic fault light with no clear cause.

Each one is a job for a licensed electrician, not a guess-and-check fix.

Contractor-focused FAQ

Q: Can one overload-protection arrangement serve multiple motors?

A: Do not assume one relay can protect multiple motors. Multiple-motor applications can require individual overload protection for each motor, and the permitted arrangement depends on the controller, equipment, applicable code requirements, and manufacturer instructions. Have the qualified professional responsible for the system confirm the protection method.

Q: How often should relays get tested?

A: On a routine maintenance schedule your electrician sets, not a fixed do-it-yourself interval.

Q: What is the real benefit of electronic over thermal?

A: Adjustable trip settings, built-in diagnostics, and phase-loss or ground-fault monitoring in one device.

Q: What certification information should I confirm for an overload relay?

A: Confirm the device’s applicable UL listing or recognition, ratings, and compatibility with the starter or controller. UL 508A is the standard for industrial control panels; it is not the product standard for an individual overload relay.

Q: Can I retrofit an electronic relay into an existing thermal starter?

A: Sometimes, if the starter frame supports the electronics module. Check compatibility with your electrician or the manufacturer before ordering.

Procurement checklist

• Confirm motor nameplate data.
• Confirm the approved overload-relay type and compatible starter or controller.
• Confirm applicable product certification, ratings, and manufacturer compatibility.
• Note ambient and altitude conditions to share with your electrician.
• Confirm panel and DIN-rail fit.
• Order from Revco with the correct part numbers.
• Confirm your electrician's commissioning and test schedule.

Key takeaways

• Overload protection prevents costly motor failures.
• Choose the overload relay from approved motor data, application requirements, trip characteristics, and controller compatibility.
• Codes and standards apply. Bring in a licensed electrician for sizing, installation, and commissioning.
• Use Revco's inventory to keep the job moving.

Revco help

Ready to protect your motors and cut down on downtime? Contact Revco or shop overload relays and transformers online now.

Article credits

Author: Revco Editorial Team, Electrical Content Editor

Contact: (631) 283-3600

Sources

NEMA. “ICS 2, Industrial Control and Systems: Controllers, Contactors, and Overload Relays for Motors.” nema.org
