Top 5 Innovations in Conduit Expansion-Deflection Couplings

Updated: August 22, 2025

15-Second TL;DR

• Use expansion-deflection couplings anywhere movement isn’t purely axial.

• Size travel with ΔL = α × L × ΔT. For PVC, α = 3.38×10⁻⁵ in/in/°F.

• Set the piston at mid travel at install temperature and mark it.

• Keep bonding continuity per 250.96; install per listing 110.3(B); PVC triggers live in 300.7(B) and 352.44.

• On Long Island: salt, frost, and picky AHJs. Plan for them.

Why it matters

Long Island jobs face real movement. Freeze–thaw cycles, salt air, wind, traffic vibration, and long rooftop runs all shove raceways around. If a raceway cannot move, it cracks, pulls boxes out of square, or opens a path for water. Expansion-deflection couplings absorb that motion so your installation stays tight, bonded, and inspectable. For stocking and job planning, see Revco’s conduit and conduit fittings.

Fundamentals

What they do. A standard expansion fitting handles axial travel only. An expansion-deflection coupling adds angular and parallel offset capacity, so the raceway can shift in multiple directions without stress.

Where they go. Typical locations include building expansion joints, long exposed PVC runs, bridge approaches, marinas, parking structures, rooftop equipment, and anywhere settlement or thermal swing is expected.

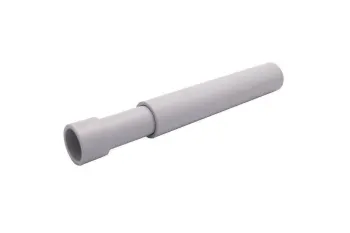

How they are built. Bodies are usually PVC or metallic with internal guides, elastomeric seals, and travel indicators. Units are Listed for the specific raceway system used and sized by trade size and required travel or deflection.

Innovation 1: True multi-axis travel with low-friction guidance

Modern cartridges use guided sleeves and bushings to keep the raceway centered while allowing axial travel plus a defined angular and parallel deflection. This reduces side-loading and binding during seasonal movement.

Innovation 2: Integrated bonding continuity

Metallic models now include internal bonding paths or external bonding lugs designed for the fitting, which simplifies compliance with equipment grounding and bonding continuity across the joint.

Innovation 3: Preset and witness-mark systems

Factory witness marks and locking collars make “set at mid-travel” simple. Installers can dial in seasonal preset length, lock it, and photograph the mark for the closeout package.

Innovation 4: Tool-saving hub designs

Captive gland nuts, swivel ends, and quick-align hubs cut install time in tight spots. Many units accept standard wrenches only and avoid special tooling. See compatible conduit fittings for transitions.

Innovation 5: Coastal-grade corrosion resistance and sealing

UV-stabilized bodies, 316 stainless hardware, and upgraded elastomers hold up in salt-spray locations. Higher ingress protection options help in wet and washdown areas. Pair with liquid-tight connectors when the run enters wet locations.

Code & compliance (NEC 2023)

• 300.7(B): Provide expansion, expansion-deflection, or deflection fittings where raceways face thermal or structural movement.
• 352.44(A)–(B): For PVC (RNC), calculate expected length change and select fittings with adequate travel; consider earth movement at transitions and joints. [1][2][4]
• 110.3(B): Install per listing and the manufacturer’s instructions. [1][3]
• 250.96: Maintain bonding continuity across metallic raceway joints. [3]
• 300.5: Underground raceways and grade transitions may need fittings or flexible sections to absorb settlement and frost heave. [1]
• 342, 344, 358: Use fittings specifically listed for IMC, RMC, and EMT, as applicable. [1][3]

Note: Local adoption and amendments vary across Long Island. Confirm details with the AHJ before buying or installing.

Selection steps

1. Identify movement: thermal, building joint, settlement, vibration, or a mix.
2. Quantify travel: for thermal, use ΔL = α × L × ΔT with consistent units. [2]
3. Check code triggers: PVC outdoors, expansion joints, or unstable soils usually require fittings per 300.7(B) and 352.44. [1][4]
4. Match to raceway and environment: choose a unit listed for EMT, RMC, IMC, or PVC; consider UV, corrosion, washdown, and hazardous area needs.
5. Verify ratings: required axial travel and angular/parallel deflection must be within the fitting’s catalog limits. [3]
6. Plan supports and preset: place supports so the piston sits near mid travel at install temperature; record the witness mark. [1]

Sizing & configuration examples (with math)

Example A: Rooftop PVC run

• Run length: 120 ft. Convert to inches: 120 ft × 12 in/ft = 1440 in.
• Temperature swing: ΔT = 100°F.
• PVC coefficient: α = 3.38×10⁻⁵ in/in/°F. [2]
• Compute ΔL: 3.38×10⁻⁵ × 1440 in × 100°F = 4.8672 in → round to 4.9 in.
• Action: Provide at least 4.9 in total travel. Use a model with ≥5 in travel or two units per manufacturer guidance. Preset for ambient at install. [2][4]

Example B: Bridge joint with rigid metal conduit

• Expected movement: axial 2 in, angular 10°, parallel offset 0.25 in.
• Selection: a listed combination unit such as Eaton Crouse-Hinds XJGD provides up to 4 in axial movement, angular deflection to 30°, and parallel offset to 0.75 in, which meets the requirements with margin. [3]
• Support so the fitting works near mid travel at install temperature; record witness mark and torque values. Follow NEMA FB 2.40 practices. [1]

Installation & wiring notes

• Preset: set the piston at mid travel for the install temperature using the factory mark; lock collars as instructed. [1]
• Alignment: keep the raceway straight into the fitting to avoid binding. For wet locations, maintain gaskets and jackets per the listing.
• Bonding: use the fitting’s integral bonding path or a listed jumper if required by the instructions. [3]
• Transitions: where the run enters wet locations, pair with listed liquid-tight connectors.
• Accessories: select compatible conduit fittings to complete the joint.

Testing, commissioning, documentation

• Verify and photograph the witness mark with ambient temperature noted.
• Measure bonding continuity across the fitting.
• Record torque values for hubs and clamps per the instructions. [1]
• Use temporary conduit plugs and caps to keep debris out before the pull.

Troubleshooting

• Binding or scraping during movement: realign supports, verify straight entry into the fitting, and reset to mid travel.
• Water ingress: inspect gaskets and jackets; replace damaged parts and confirm connectors are listed for wet locations.
• Piston bottomed out: your calculated ΔL exceeded the model’s travel. Add a second fitting or select a higher-travel unit and preset correctly. [2]

Common mistakes

• Using expansion-only fittings where angular or lateral movement exists.
• Skipping bonding continuity across metallic joints. [3]
• Ignoring NEMA FB 2.40 installation practices. [1]
• Placing supports so the fitting sits at an end stop instead of mid travel.

Parts to stock

• Expansion-deflection couplings in 1, 2, 3, and 4 in trade sizes for EMT, RMC/IMC, and PVC.
• Bonding jumpers for larger metallic systems, stainless hardware for coastal jobs, PVC primer and cement.
• Wet-location accessories and sealing fittings where required.
• Browse Revco’s expansion-deflection couplings to build your kit.

When to call the AHJ or an engineer

• Crossing building or bridge expansion joints, seismic detailing, corrosive atmospheres, hazardous locations, or sizes above 4 in.
• Unusual temperature swings or settlement risk that push catalog limits.
• Local amendments affecting 352.44 or 300.7(B) on Long Island.

Safety disclaimer

Follow the 2023 NEC by Article and Section, the product listing, and the manufacturer’s instructions. Local adoption and amendments vary across Long Island; verify details with the Authority Having Jurisdiction before purchasing or installing.

FAQ

Do EMT or RMC runs need these? Yes, where structural movement or misalignment is present and the fitting is specifically listed for that raceway. [1]

What coefficient do I use for PVC? 3.38×10⁻⁵ in/in/°F; apply ΔL = α × L × ΔT. [2]

How much deflection can a typical combination unit handle? Some models allow angular deflection to 30° and parallel offset to 0.75 in; verify by trade size in the catalog. [3]

When are PVC expansion fittings required? When expected length change is 1/4 in or more between fixed points per 352.44. For risers and transitions exposed to frost or settlement, confirm details with the AHJ and the latest manufacturer instructions. [4]

Credits

Author: Revco Editorial Team — Electrical Content Editor
Technical review: Pending — add approved name/credential
Contact: (631) 283-3600
